Pumpar elektriska pumpar vertikala flerstegs MEKVS50-15
Pumpar elektriska pumpar vertikala flerstegs MEKVS50-15
| MEKVS50-15 - 2 Poler | |||||
| Pump | H1 | H2 |
D1 |
Pump Vikt | Motor Vikt |
| ME4KVS50-15/3 | 453 | * | * | 31 | * |
| ME5,5KVS50-15/5 | 543 | * | * | 34 | * |
| ME7,5KVS50-15/7 | 665 | * | * | 48 | * |
| ME10KVS50-15/9 | 755 | * | * | 56 | * |
| ME15KVS50-15/14 | 1057 | * | * | 65 | * |
| ME20KVS50-15/17 | 1192 | * | * | 70 | * |

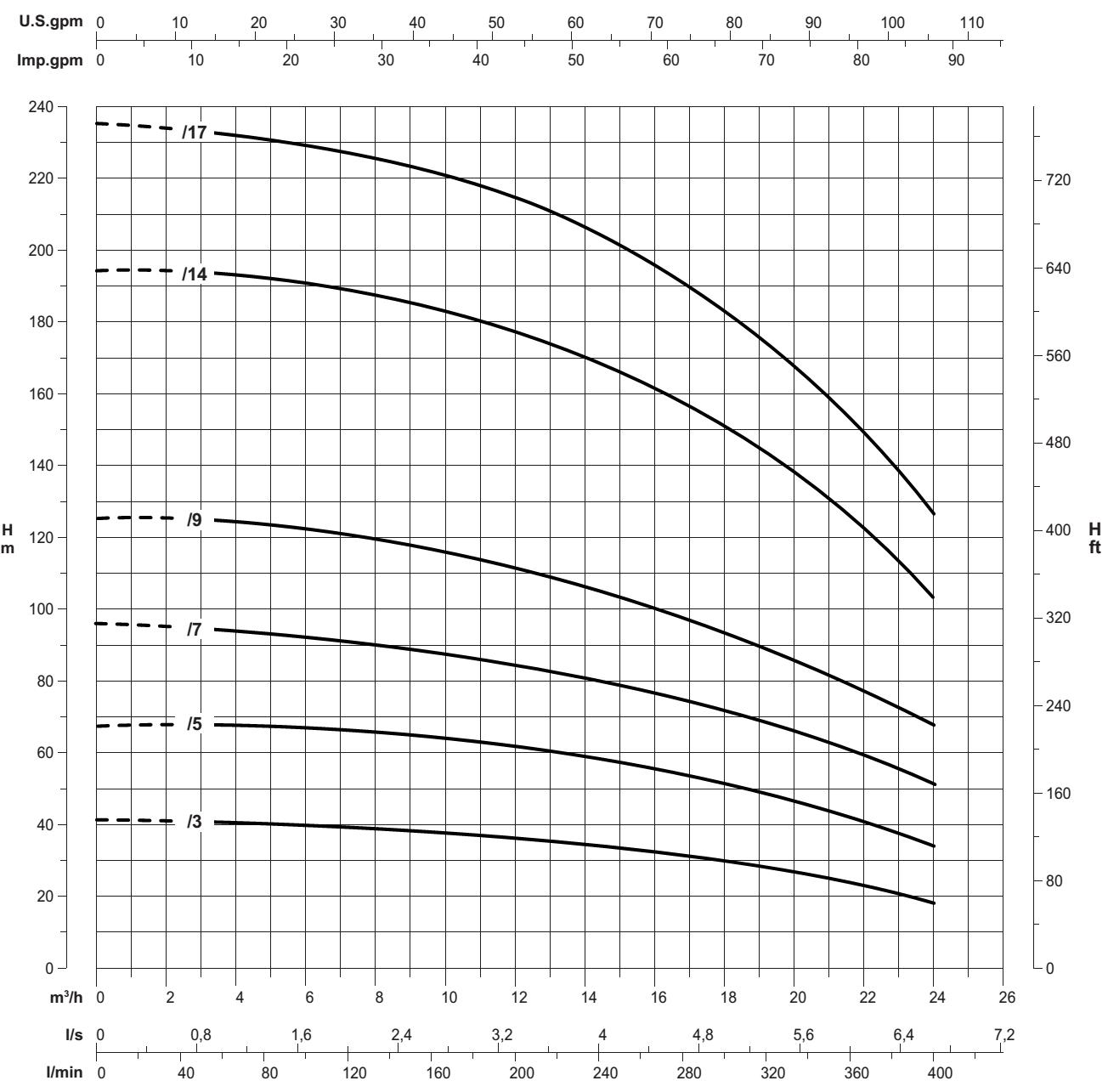

| Pumptyp | Motoreffekt | Kapacitet | |||||||||
| [l/min]] | 0 | 25 | 50 | 100 | 200 | 250 | 300 | 350 | 400 | ||
| [m3/h] | 0 | 1,5 | 3 | 6 | 12 | 15 | 18 | 21 | 24 | ||
| [kW] | [I/s] | 0 | 0,41 | 0,83 | 1,7 | 3,3 | 4,1 | 5 | 5,8 | 6,6 | |
| ME4KVS50-15/3 | 3 | [Hm] | 41 | 41 | 41 | 40 | 37 | 33 | 30 | 24 | 18 |
| ME5,5KVS50-15/5 | 4 | [Hm] | 68 | 66 | 68 | 67 | 61 | 58 | 52 | 44 | 34 |
| ME7,5KVS50-15/7 | 5,5 | [Hm] | 96 | 95 | 94 | 92 | 85 | 79 | 71 | 63 | 51 |
| ME10KVS50-15/9 | 7,5 | [Hm] | 125 | 125 | 124 | 122 | 111 | 104 | 95 | 82 | 68 |
| ME15KVS50-15/14 | 11 | [Hm] | 194 | 194 | 193 | 191 | 177 | 167 | 151 | 130 | 103 |
| ME20KVS50-15/17 | 15 | [Hm] | 236 | 235 | 233 | 232 | 218 | 203 | 181 | 157 | 128 |
Kurvor fastställda för vätsketäthet 1000kg/m³
Viskositet 1 mm²/s
Temperatur 20°C,
η% - Pump effektivitet, Y Ventilförlust returnerar inte.
