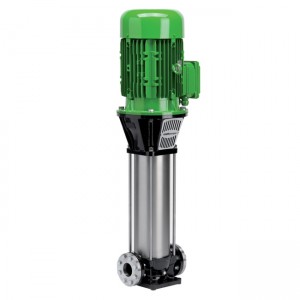

Pumpar vertikala flerstegs elektriska MEKVI65-40
Pumpar vertikala flerstegs elektriska MEKVI65-40
| MEKVI65-40 - 2 Poler | |||||||
| Pump | IEC | A | B |
C |
D | Pump Vikt | Motor Vikt |
| ME15KVI65-40/5 | • |
* | 744 | * | * | 79 | * |
| ME17KVI65-40/6 | • | * | 803 | * | * | 84 | * |
| ME20KVI65-40/6 | • | * | 803 | * | * | 84 | * |
| ME25KVI65-40/8 | • | * | 921 | * | * | 94 | * |
| ME30KVI65-40/9 | • | * | 980 | * | * | 99 | * |
| ME35KVI65-40/11 | * | 1098 | * | * | 108 | * | |
| ME35KVI65-40/11 | • | * | 1098 | * | * | 109 | * |
| ME40KVI65-40/13 | • | * | 1216 | * | * | 117 | * |
| Pumptyp | Motoreffekt | Kapacitet | ||||||||||
| [l/min]] | 0 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |||
| [m3/h] | 0 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | |||
| IEC | [kW] | [l/s] | 0 | 5 | 6,7 | 8,3 | 10 | 11,7 | 13,3 | 15 | 16,7 | |
| ME15KVI65-40/5 | • | 11 | [Hm] | 102 | 86 | 81 | 76 | 72 | 66 | 57 | 45 | 30 |
| ME17KVI65-40/6 | • | 15 | [Hm] | 120 | 101 | 95 | 90 | 85 | 77 | 66 | 52 | 35 |
| ME20KVI65-40/6 | • | 15 | [Hm] | 131 | 110 | 104 | 100 | 95 | 88 | 76 | 62 | 45 |
| ME25KVI65-40/8 | • | 18,5 | [Hm] | 167 | 140 | 133 | 127 | 120 | 110 | 95 | 76 | 54 |
| ME30KVI65-40/9 | • | 22 | [Hm] | 191 | 164 | 157 | 152 | 146 | 138 | 120 | 99 | 74 |
| ME35KVI65-40/11 | • |
26 | [Hm] | 231 | 198 | 191 | 183 | 174 | 163 | 142 | 118 | 89 |
| ME35KVI65-40/11 | • | 30 | [Hm] | 231 | 198 | 191 | 183 | 174 | 163 | 142 | 118 | 89 |
| ME40KVI65-40/13 | • | 30 | [Hm] | 271 | 232 | 223 | 214 | 203 | 189 | 165 | 137 | 103 |

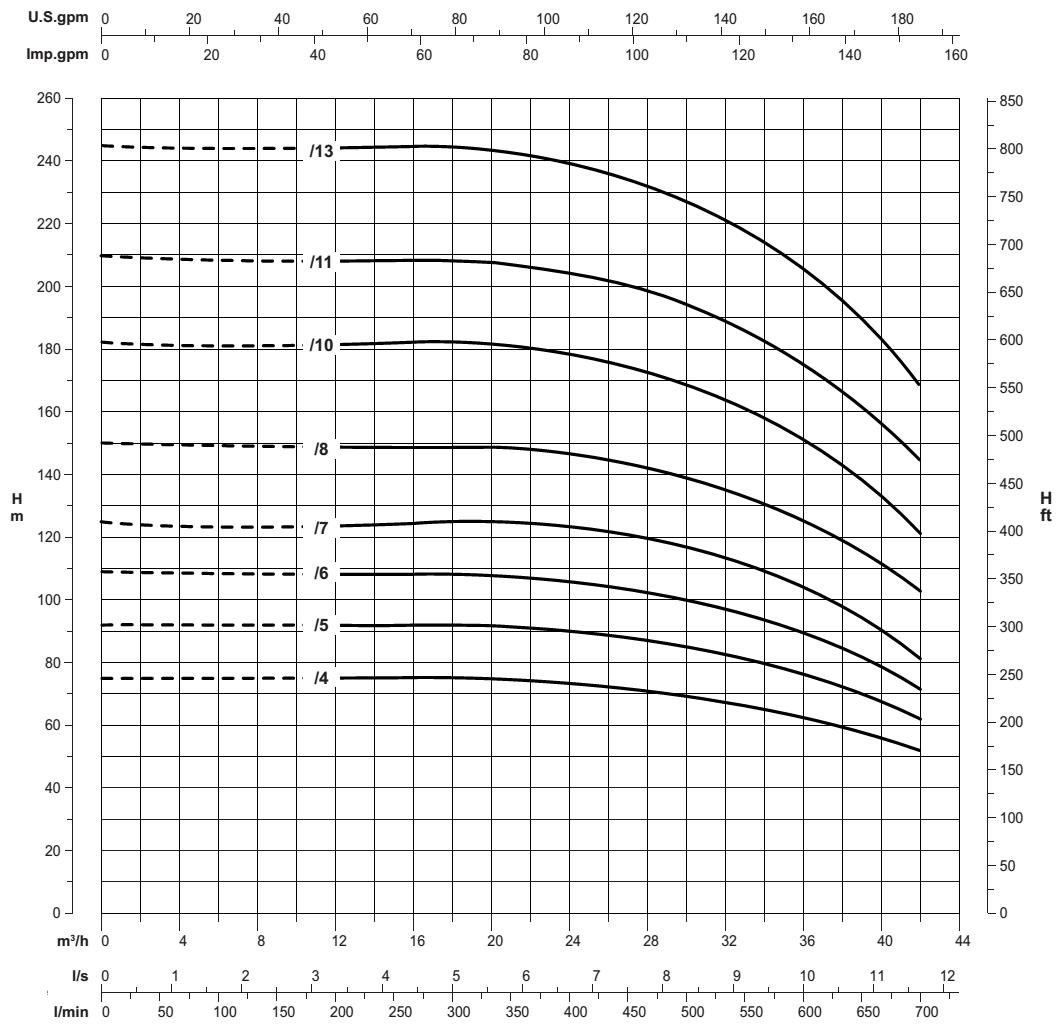

Kurvor fastställda för vätsketäthet 1000 kg/m³
Viskositet 1 mm²/s
Temperatur 20°C,

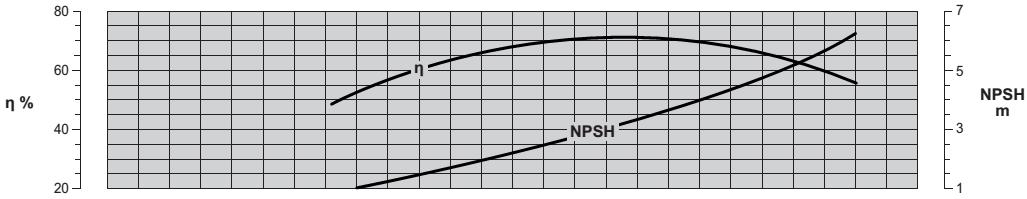

η% - Pump effektivitet, Y Ventilförlust returnerar inte.
